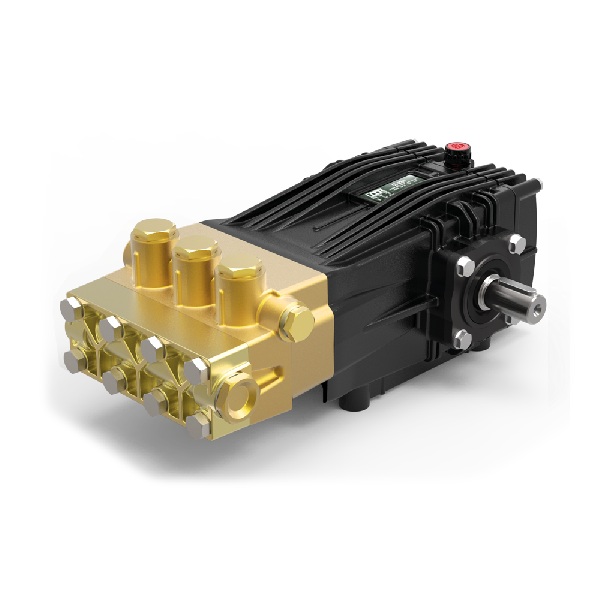

Udor USA CXC 15/50 S Solid Shaft Model 24mm Keyed Solid Shaft 4.0 GPM/7250 PSI/1450 RPM

Description

CXC Series super duty plunger pumps include a wide range of models with flow rates from 4.0 to 5.8 GPM and pressures up to 7250 PSI.

Other drive options include gas engine gear reduction.

Applications include general pressure cleaning, construction, hydro-excavation and oil field applications

Features

Solid Ceramic Plungers
Stainless Steel Check Valves
Heavy Duty Brass Manifold
Heavy Duty Bronze Connecting Rods
Deeper Back Cover for Increased Oil Capacity
34.5 oz. Capacity Vented Oil Bath Crank Case
3/4” BSP-F Inlet. 3/8” BSP-F Outlet
Max Fluid Temp, 160°F

Specifications

Flow – GPM	4.0
Flow – L/min	15
RPM	1450
PSI	7250
Bar	500
Power Req.	19.5 EBHP
Seal Kit	6061.88 (Kit 88)
Valve Kit	6061.S5 (Kit 224)
Weight	52 lbs.
