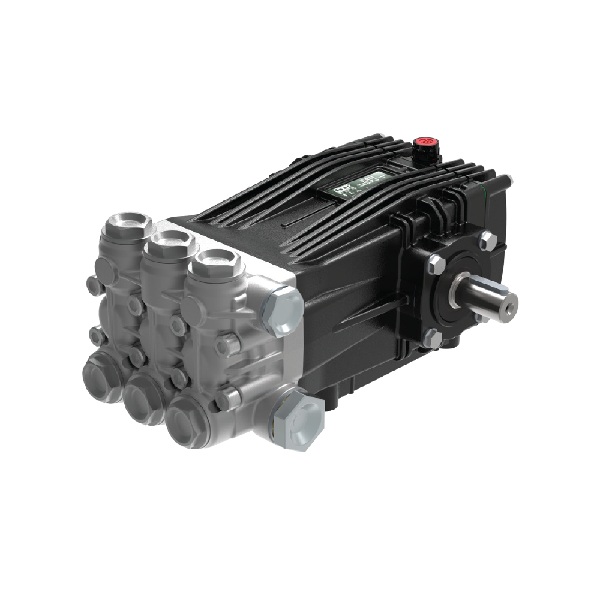

Udor USA CWTC 27/20 S CWT Series Solid Shaft Model 24mm Keyed Solid Shaft 7.1 GPM/2900 PSI/1450 RPM
Description
CWT Series high temperature rated plunger pumps include a wide range of models with flow rates from 4.0 to 5.5 GPM and pressures up to 2900 PSI.
These pumps are designed and engineered with high temperature seals and nickel plated manifolds to withstand the demands of hot water applications.
BWT series pumps are well suited for general pressure cleaning, disinfecting and food/pharma applications.
Features
- Solid Ceramic Plungers
- Stainless Steel Check Valves
- Heavy Duty Plated Brass Manifold with External and Internal Bracing
- High Temperature Seals for Hot Water Applications
- Large Diameter Plated Brass Valve Caps with Increased Thread Depth
- Reinforcing Ring on Inlet and Discharge Ports
- Deeper Back Cover for Increased Oil Capacity
- 35 oz. Capacity Vented Oil Bath Crank Case
- 3/4″ BSP-F Inlet. 3/8″ BSP-F Outlet: 5.5 – 8.5 GPM
- 3/4″ BSP-F Inlet. 1/2″ BSP-F Outlet: 9.0 GPM & Above
- Max Fluid Temp, 185°F
Specifications
|
Flow – GPM
|
7.1
|
|
Flow – L/min
|
27.0
|
|
RPM
|
1450
|
|
PSI
|
2900
|
|
Bar
|
200
|
|
Power Req.
|
13.8 EBHP
|
|
Weight
|
35 lbs
|
Udor USA CWTC 27/20 S CWT Series Solid Shaft Model 24mm Keyed Solid Shaft 7.1 GPM/2900 PSI/1450 RPM [CWTC 27/20 S]
Steambrite's Plunger Pumps - Udor USA CWTC 27/20 S CWT Series Solid Shaft Model 24mm Keyed Solid Shaft 7.1 GPM/2900 PSI/1450 RPM [CWTC 27/20 S] is .
If you can find a lower advertised price on the Udor USA CWTC 27/20 S CWT Series Solid Shaft Model 24mm Keyed Solid Shaft 7.1 GPM/2900 PSI/1450 RPM [CWTC 27/20 S] - CWTC 27/20 S,contact us at 210-662-9000,
and we will beat their price! Guaranteed!
