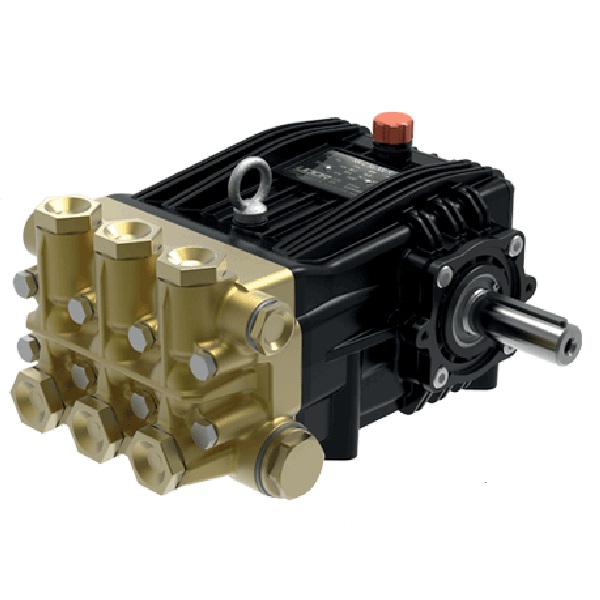

Udor USA NK-C 85/170 R Solid Shaft Model, 30mm Keyed Solid Shaft 22.5 GPM/2465 PSI/1450 RPM [NK-C 85/170 R]

Click to enlarge

Your Price:

Part Number: NK-C 85/170 R
Guaranteed: We will beat their price!
Quantity:
Estimated shipping cost: $ 55.00

Download information on the Udor USA NK-C 85/170 R Solid Shaft Model, 30mm Keyed Solid Shaft 22.5 GPM/2465 PSI/1450 RPM [NK-C 85/170 R]

Udor USA NK-C 85/170 R Solid Shaft Model, 30mm Keyed Solid Shaft 22.5 GPM/2465 PSI/1450 RPM [NK-C 85/170 R]
Steambrite's Plunger Pumps - Udor USA NK-C 85/170 R Solid Shaft Model, 30mm Keyed Solid Shaft 22.5 GPM/2465 PSI/1450 RPM [NK-C 85/170 R].
If you can find a lower advertised price on the Udor USA NK-C 85/170 R Solid Shaft Model, 30mm Keyed Solid Shaft 22.5 GPM/2465 PSI/1450 RPM [NK-C 85/170 R] - NK-C 85/170 R, contact us at 210-662-9000,
and we will beat their price! Guaranteed!

dehumidifier rotobrush N/A air duct cleaning service dry cleaning equipment carpet cleaning equipment supply used truck mount carpet cleaning equipmentdehumidifier discount hard surface N/A carpet cleaning product maytag dehumidifier portable carpet cleaning machinelg dehumidifier N/A professional carpet cleaning equipment agricultural cleaning cleaning equipment equipment equipment garden generator hand home hydraulics improvement job lawn plan power N/A chemical cleaning pipe sears dehumidifiercarpet cleaning equipment supply carpet extractor cleaner chimney cleaning equipment carpet cleaning supply used cleaning equipment portable dehumidifier N/A dessicant dehumidifier N/A car steam cleaning equipment chemical cleaning pipe

Udor USA NK-C 85/170 R Solid Shaft Model, 30mm Keyed Solid Shaft 22.5 GPM/2465 PSI/1450 RPM

Description

NKC Series super duty plunger pumps include a wide range of models with flow rates from 9.1 to 37.8 GPM and pressures up to 5075 PSI.

Other drive options include gas engine gear reduction and hydraulic motor flange.

Applications include general pressure cleaning, construction, hydro-excavation, UHP fire fighting, mining and street cleaning.

Features

1″ BSP-F Inlet. 1/2″ BSP-F Outlet
Brass Manifold
Solid Ceramic Plungers
Stainless Steel Plunger Guides and Check Valves
Bronze Connecting Rods
Heavy Duty Flat Base High Pressure Seals
58 oz. Capacity Vented Oil Bath Crank Case
Max Fluid Temp, 160°F

Specifications

Flow – GPM	22.5
Flow – L/min	85.2
RPM	1450
PSI	2465
Bar	170
Power Req.	37.0 EBHP
Seal Kit	6061.12 (Kit 12)
Valve Kit	6061.M6 (Kit 182)
Weight	67 lbs.

Dimensions

Product Page

Manual

Udor USA NK-C 85/170 R Solid Shaft Model, 30mm Keyed Solid Shaft 22.5 GPM/2465 PSI/1450 RPM [NK-C 85/170 R]
Steambrite's Plunger Pumps - Udor USA NK-C 85/170 R Solid Shaft Model, 30mm Keyed Solid Shaft 22.5 GPM/2465 PSI/1450 RPM [NK-C 85/170 R] is .
If you can find a lower advertised price on the Udor USA NK-C 85/170 R Solid Shaft Model, 30mm Keyed Solid Shaft 22.5 GPM/2465 PSI/1450 RPM [NK-C 85/170 R] - NK-C 85/170 R,contact us at 210-662-9000,
and we will beat their price! Guaranteed!

mattress cleaning equipment furnace air duct cleaning N/A carpet cleaning extractor machine air cleaning duct services toronto honeywell dehumidifier phoenix dehumidifier cleaning filter equipment carpet chemical cleaning N/A best dehumidifier maytag dehumidifier industrial carpet cleaning equipment dehumidifier N/A drieaz honeywell dehumidifier N/A 40 pint dehumidifier air duct cleaning truck commercial cleaning equipment hampton bay dehumidifier commercial carpet extractor rotobrush portable dehumidifier chemical cleaning roof N/A oasis dehumidifier N/A air duct cleaning business rug cleaning equipment

Product Options

This product was added to our store on Friday 01 August, 2025.

Steambrite will ship the Udor USA NK-C 85/170 R Solid Shaft Model, 30mm Keyed Solid Shaft 22.5 GPM/2465 PSI/1450 RPM [NK-C 85/170 R] by either Fedex or Freight Quote, and are normally shipped within 1-10 working days. Please remember it takes 6-8 working days for you to receive your order after shipment, and ground shipping times are not guaranteed. Next day and two day service are available. Click here for our full shipping policy. Specifications subject to change without notice.
