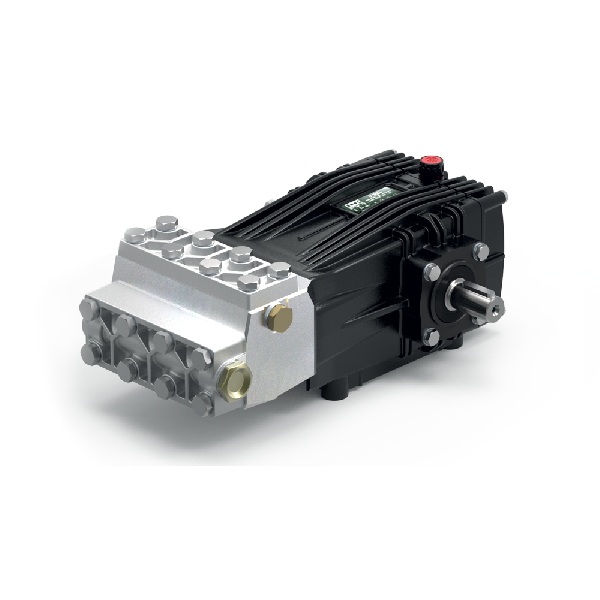

Udor USA CHC 12/50 S Solid Shaft Model, 24mm Keyed Solid Shaft 3.2GPM/7250 PSI/1450 RPM [CHC 12/50 S]

Click to enlarge

Your Price:

Part Number: CHC 12/50 S
Guaranteed: We will beat their price!
Quantity:
Estimated shipping cost: $ 42.00

Download information on the Udor USA CHC 12/50 S Solid Shaft Model, 24mm Keyed Solid Shaft 3.2GPM/7250 PSI/1450 RPM [CHC 12/50 S]

Udor USA CHC 12/50 S Solid Shaft Model, 24mm Keyed Solid Shaft 3.2GPM/7250 PSI/1450 RPM [CHC 12/50 S]
Steambrite's Plunger Pumps - Udor USA CHC 12/50 S Solid Shaft Model, 24mm Keyed Solid Shaft 3.2GPM/7250 PSI/1450 RPM [CHC 12/50 S].
If you can find a lower advertised price on the Udor USA CHC 12/50 S Solid Shaft Model, 24mm Keyed Solid Shaft 3.2GPM/7250 PSI/1450 RPM [CHC 12/50 S] - CHC 12/50 S, contact us at 210-662-9000,
and we will beat their price! Guaranteed!

carpet carpet cleaning hydramaster N/A office cleaning equipment carpet cleaning machine for sale basement dehumidifier 2x bissell carpet complete extractor heat protruck mounted carpet cleaning equipment houston air duct cleaning N/A used truck mount carpet cleaning machine bidding bidding care carpet carpet cleaning cleaning cleaning equipment floor janitorsedge.ca software software supplys industrial carpet cleaning machinesteam cleaning equipment manufacturer N/A air cleaning conditioning duct heating system drieaz N/A air cleaning duct waukesha water restoration equipmentdessicant dehumidifier hydramaster part cleaning equipment pressure replacement service site supply tool tool washer wood working carpet deep cleaning machine furnace cleaning equipment N/A All Cleaning Equipment N/A carpet cleaning equipment rental automotive carpet extractor

Udor USA CHC 12/50 S Solid Shaft Model, 24mm Keyed Solid Shaft 3.2GPM/7250 PSI/1450 RPM

Description

CHC Series super duty plunger pumps include a wide range of models with flow rates from 3.2 to 5.3 GPM and pressures up to 7250 PSI.

Other drive options include gas engine gear reduction.

Applications include general pressure cleaning, construction, hydro-excavation and oil field applications.

Features

Solid Ceramic Plungers
Stainless Steel Check Valves
Stainless Steel Block Manifold with Nickel Plated Valve Covers
Deeper Back Cover for Increased Oil Capacity
34.5 oz. Capacity Vented Oil Bath Crank Case
3/4” BSP-F Inlet. 3/8” BSP-F Outlet
Max Fluid Temp, 160°F

Specifications

Flow – GPM	3.2
Flow – L/min	12
RPM	1450
PSI	7250
Bar	500
Power Req.	15.5 EBHP
Seal Kit	6061.88 (Kit 88)
Valve Kit	6061.G1 (Kit 152)
Weight	49 lbs.

Dimensions

Product Page

Manual

Udor USA CHC 12/50 S Solid Shaft Model, 24mm Keyed Solid Shaft 3.2GPM/7250 PSI/1450 RPM [CHC 12/50 S]
Steambrite's Plunger Pumps - Udor USA CHC 12/50 S Solid Shaft Model, 24mm Keyed Solid Shaft 3.2GPM/7250 PSI/1450 RPM [CHC 12/50 S] is .
If you can find a lower advertised price on the Udor USA CHC 12/50 S Solid Shaft Model, 24mm Keyed Solid Shaft 3.2GPM/7250 PSI/1450 RPM [CHC 12/50 S] - CHC 12/50 S,contact us at 210-662-9000,
and we will beat their price! Guaranteed!

commercial carpet extractor dehumidifier review N/A wholesale carpet cleaning supply pool cleaning equipment carpet cleaning machine rent carpet extractor quiet dehumidifier dehumidifier desiccant manufacturing N/A carpet cleaning supply home carpet cleaning machine hampton bay dehumidifier el lobo truckmount N/A 40 cfm dehumidifier soleus phoenix dehumidifier N/A used truck mount carpet cleaning machine carpet cleaning equipment for sale pool dehumidifier cleaning computer equipment drain cleaning equipment dehumidifier repair carpet cleaning machine rent professional carpet cleaning equipment N/A baked cleaning equipment floor providing N/A agricultural cleaning cleaning equipment equipment equipment garden generator hand home hydraulics improvement job lawn plan power wholesale carpet cleaning equipment

Product Options

This product was added to our store on Thursday 31 July, 2025.

Steambrite will ship the Udor USA CHC 12/50 S Solid Shaft Model, 24mm Keyed Solid Shaft 3.2GPM/7250 PSI/1450 RPM [CHC 12/50 S] by either Fedex or Freight Quote, and are normally shipped within 1-10 working days. Please remember it takes 6-8 working days for you to receive your order after shipment, and ground shipping times are not guaranteed. Next day and two day service are available. Click here for our full shipping policy. Specifications subject to change without notice.
