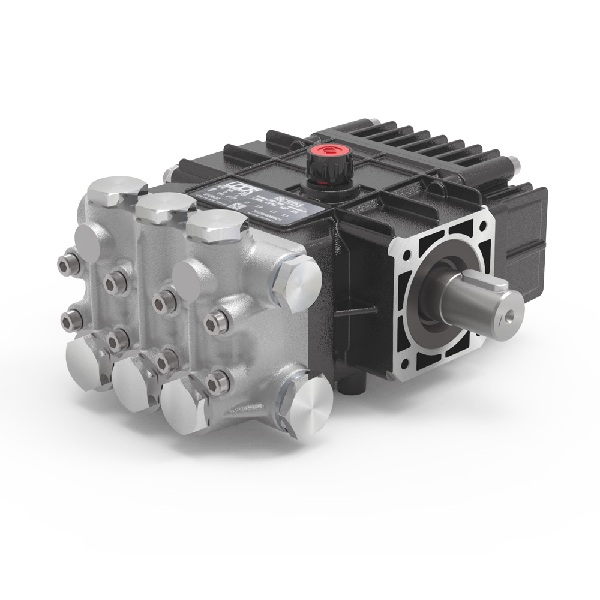

Udor USA PSC 11/15 S PS Series Solid Shaft Model 24mm Keyed Solid Shaft 3.0 GPM/2175 PSI/1450 RPM
Description
PSC Series stainless steel plunger pumps include a wide range of models with flow rates from 1.5 to 3.4 GPM and pressures up to 2175 PSI.
Models are also available with a 5/8” hollow shaft and NEMA 56C electric motor flange.
These pumps feature stainless steel wetted and exterior components to withstand the harsh environment of salt water applications.
PSC Series pumps are well suited for de-salination, disinfecting and food/pharma applications.
Features
- 316 Stainless Steel Manifolds
- 316 Stainless Steel Valves
- 316 Stainless Steel Plunger Rods & Nuts
- 304 Stainless Steel Exterior Bolts
- Solid Ceramic Plungers
- 1/2″ BSP-F Inlet. 3/8″ BSP-F Outlet
- PTFE Style Packings
- 12 oz. Oil Capacity
Specifications
|
Flow – GPM
|
3.0
|
|
Flow – L/min
|
11
|
|
RPM
|
2175
|
|
PSI
|
1450
|
|
Bar
|
150
|
|
Power Req.
|
4.2 EBHP
|
|
Seal Kit
|
6061.B1 (Kit 108)
|
|
Valve Kit
|
6061.D7 (Kit 132)
|
|
Weight
|
15 lbs
|
Udor USA PSC 11/15 S PS Series Solid Shaft Model 24mm Keyed Solid Shaft 3.0 GPM/2175 PSI/1450 RPM [PSC 11/15 S]
