General Pump T9281 47 Series – 24mm Solid Shaft – Nickel Plated Manifold

Description

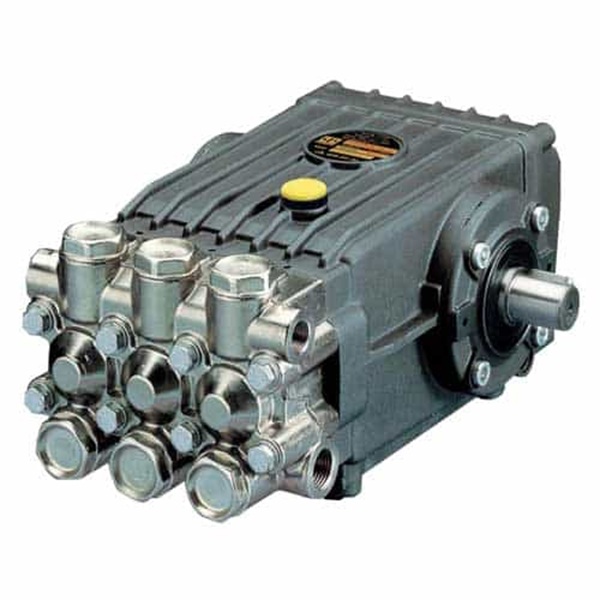

Triplex plunger pump featuring advanced forged brass manifold with nickel plating for increased working pressure. Solid ceramic plungers with continuously lubricated packings and over-sized connecting rods, for maximum life span. 16 mm solid shaft.

Specifications

GPM	4.0
PSI	4000
LPM	15
BAR	275.5
RPM	1750
Bore	16mm
Stroke	16mm
EBHP	11.0
Max. Inlet Pressure	125 PSI
Max. Fluid Temperature	165° F
Inlet Port Thread	1/2”-14 BSP-F
Discharge Port Thread	3/8”-19 BSP-F
Shaft Diameter	.945in./24mm
Shipping Weight	32.0 lbs.
