Kohler PA-CH440-3302A Rated Command Pro Horizontal Recoil Start Engine 429cc 1inX3.49in Shaft PA-CH440-3149 Replacement Box [PA-CH440-3302A]

Click to enlarge

Your Price:

Part Number: PA-CH440-3302A
Guaranteed: We will beat their price!
Quantity:
Estimated shipping cost: $ 122.00

Download information on the Kohler PA-CH440-3302A Rated Command Pro Horizontal Recoil Start Engine 429cc 1inX3.49in Shaft PA-CH440-3149 Replacement Box [PA-CH440-3302A]

Kohler PA-CH440-3302A Rated Command Pro Horizontal Recoil Start Engine 429cc 1inX3.49in Shaft PA-CH440-3149 Replacement Box [PA-CH440-3302A]
Steambrite's Kohler Command Pro 14hp PA-CH440 - Kohler PA-CH440-3302A Rated Command Pro Horizontal Recoil Start Engine 429cc 1inX3.49in Shaft PA-CH440-3149 Replacement Box [PA-CH440-3302A].
If you can find a lower advertised price on the Kohler PA-CH440-3302A Rated Command Pro Horizontal Recoil Start Engine 429cc 1inX3.49in Shaft PA-CH440-3149 Replacement Box [PA-CH440-3302A] - PA-CH440-3302A, contact us at 210-662-9000,
and we will beat their price! Guaranteed!

rx-20 hydra master air cleaning conditioner duct N/A carpet cleaning machine rental windsor carpet extractor castex carpet extractor carpet cleaning equipment truckmountedtank cleaning equipment grain cleaning equipment N/A floor cleaning equipment mold carpet cleaning equipmentrx-20 hydra master N/A ninja carpet extractor box carpet extractor N/A grain cleaning equipment desiccant dehumidifiercarpet extractor part furnace dehumidifier the rug doctor carpet cleaning machine carpet cleaning equipment supply marine dehumidifier bionaire dehumidifier N/A phoenix dehumidifier N/A truck mounted carpet cleaning equipment truck mount carpet cleaning machine

Kohler PA-CH440-3302A A Rated Command Pro Horizontal Recoil Start Engine — 429cc 1in x 3.49in Shaft

aka PA-CH440-3149

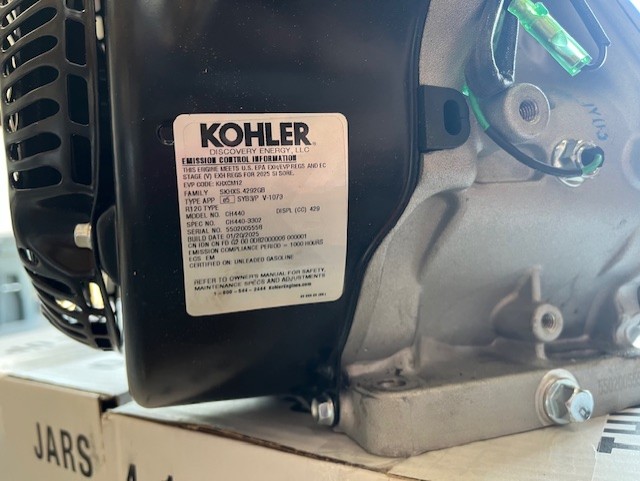

A Rated New Engine serial # 5502005558 Only 1 at this price

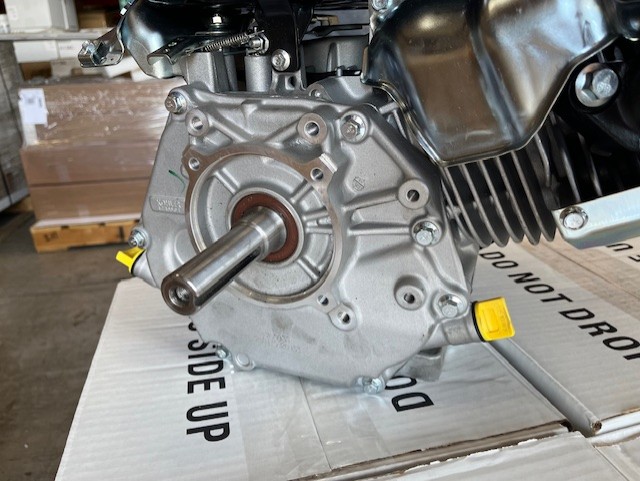

Engine does not include a shaft keyway key (see photo)
Brand new, zero hours on engine other than factory testing.
Original box damaged so item will arrive with foam board packaging.
All sales final but includes a full factory parts warranty.

Large muffler for quiet operation
Large metal fuel tank with metal cap
Single cylinder
Aluminum block with cast iron cylinder liner
Oil Sentry® low oil shutdown system
10 amp charging system

Features + Benefits

Large muffler for quiet operation
Large metal fuel tank with metal cap
Single cylinder
Aluminum block with cast iron cylinder liner

Oil Sentry® low oil shutdown system
Dual air drains
Engine-mounted controls with key box
50-state compliant engine
For use with ethanol free only fuel

Key Specs

Cooling System	Air
Air Cleaner Type	Heavy-duty cyclonic
Fuel Tank	Yes
Fuel Type	Gasoline
Fuel Tank Capacity (qt.)	7.7
Fuel Filter	3: fill neck, in tank and carb inlet
Oil Capacity (qt.)	1.16
Lubrication System	Splash
Low Oil Shutdown	Yes
Ignition System	Electronic
Governor System	Mechanical
Carburetor	Float w/bowl drain
Throttle Control	Engine-mounted
Choke Control	Engine-mounted
Max. RPM	3,600
Muffler Included	Yes
Auto Compression Release	Yes
Bolt Circle (in.)	5, 6.5
Mounting Base L x W (in.)	7.697 x 3.78
Mounting Bolt Pattern L x W (in.)	7.697 x 3.78
Dimensions L x W x H (in.)	15 x 17.8 x 17.4
EPA/CARB Approval (California Air Resource Board)	Yes

Item#	13937
Brand	Kohler Engines
Manufacturer's Warranty	3 year limited warranty
Ship Weight	85.0 lbs
Engine Displacement (cc)	429
Start Type	recoil
Application	Log splitter, pressure washer, blower/vacuum, cement trowel, cement mixer, construction equipment
Engine Type	OHV
Torque (ft./lbs.)	22.7 (30.8 Nm) at 3,600 RPM
Displacement (cu. in.)	24.7
Shaft Output	CCW
Crankshaft	Hardened
Shaft Diameter (in.)	1
Shaft Length (in.)	3.49
Shaft Keyway (in.)	0.250
Shaft End Tapped (Diameter (in.)/Threads per inch)	3/8/24
Shaft Rotation (From PTO Shaft Side)	CCW
PTO Height (in.)	5.256
Bearing Type	Ball
Cylinders (qty.)	1
Cylinder Bore	Cast iron liner
Bore x Stroke (in.)	3.5 x 2.7
Compression Ratio	8:1

Kohler PA-CH440-3302A Rated Command Pro Horizontal Recoil Start Engine 429cc 1inX3.49in Shaft PA-CH440-3149 Replacement Box [PA-CH440-3302A]
Steambrite's Kohler Command Pro 14hp PA-CH440 - Kohler PA-CH440-3302A Rated Command Pro Horizontal Recoil Start Engine 429cc 1inX3.49in Shaft PA-CH440-3149 Replacement Box [PA-CH440-3302A] is .
If you can find a lower advertised price on the Kohler PA-CH440-3302A Rated Command Pro Horizontal Recoil Start Engine 429cc 1inX3.49in Shaft PA-CH440-3149 Replacement Box [PA-CH440-3302A] - PA-CH440-3302A,contact us at 210-662-9000,
and we will beat their price! Guaranteed!

chemical cleaning pipe truckmount N/A drain cleaning equipment carpet cleaning equipment manufacturer blind cleaning equipment air duct cleaning milwaukee janitorial cleaning equipment carpet cleaning equipment rental N/A window cleaning equipment dehumidifier product review carpet cleaning equipment used dry cleaning equipment N/A cheap dehumidifier basement dehumidifier N/A chemical cleaning exchanger heat extractor portable basement dehumidifier amcor dehumidifier dehumidifier the rug doctor carpet cleaning machine mytee carpet extractor carpet extractor self N/A carpet rug cleaning equipment supply wholesale N/A portable carpet cleaning equipment air cleaning conditioning duct heating system

Product Options

This product was added to our store on Friday 08 August, 2025.

Steambrite will ship the Kohler PA-CH440-3302A Rated Command Pro Horizontal Recoil Start Engine 429cc 1inX3.49in Shaft PA-CH440-3149 Replacement Box [PA-CH440-3302A] by either Fedex or Freight Quote, and are normally shipped within 1-10 working days. Please remember it takes 6-8 working days for you to receive your order after shipment, and ground shipping times are not guaranteed. Next day and two day service are available. Click here for our full shipping policy. Specifications subject to change without notice.
