Cleaning machine for basic maintenance cleaning of escalators and travelators.

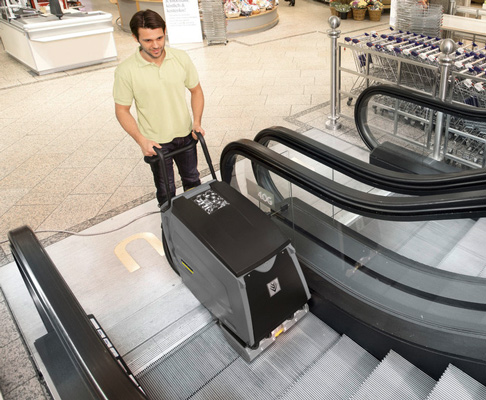

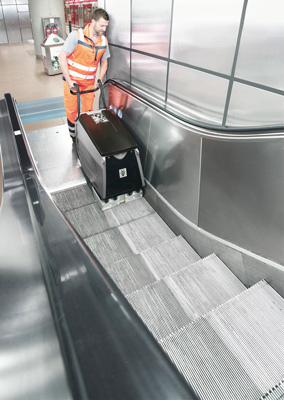

Cleaning with the BR 47 35 esc is performed with the escalator or travelator running. The machine is positioned at the bottom of the escalator. Special nozzles spray the cleaning solution onto the scrubbing brushes, which then apply it to the treads. (Treads must move away from the machine.) Dirty cleaning solution is vacuumed away gain in the same operation. This is assisted by pick-up brushes which convey the solution to the suction nozzles. The shape of the brush head and the central brush motor allow the brushes to reach and clean the outermost grooves in the tread. A centring skid in the middle of the brush head keeps the machine in alignment during the cleaning process. The BR 47 35 esc is suitable for many different makes of escalators and travelators. Four different sets of combs are available to suit most makes. They engage in the tread grooves to provide a seal between the machine and the treads for efficient pickup.

Compare to current or past OEM associations:
Kone
Chindler
Otis 622 and 913
Thyssen-Krupp FT983
Fujitec FT983
Montgomery
Westinghouse
Mitsubishi
CNIM
Dong Yang
Hatachi
Toshiba
O&K
Windsor WIN13101100
WN-1.310-110.0
BR 47/35
13101100
1.310-109.0

Features

Suitable for Escalators and Travelator (Power sidewalks / people movers).

• Combs which enter the grooves in the escalator provide the necessary vacuum.
• Different combs are available to suit different types of escalators. This ensures that the water is effectively vacuumed from the escalator.

Excellent suction power

• The applied water is reliably sucked back into the machine by the two powerful suction turbines together with four straight suction hoses and matching combs.
• Prevents water from dripping into the escalator shaft.

Excellent suction power

• Prevents water from dripping into the escalator shaft.

Easy to stand up at the rear of the machine during operation

• Easy to use

Brush and comb replacement without tools

• Industrial sweepers

Brush head is lowered on escalators

• Safe handling

High quality

• High-quality components reduce the maintenance requirements to a minimum

No vibrations

• More comfort

Powerful suction turbine

• For extremely high suction power. The applied water is reliably sucked back into the machine together with four straight suction hoses and matching combs.

Short brush head

• For universal use. Also suitable for cleaning escalators that ascend after 1½ steps.
